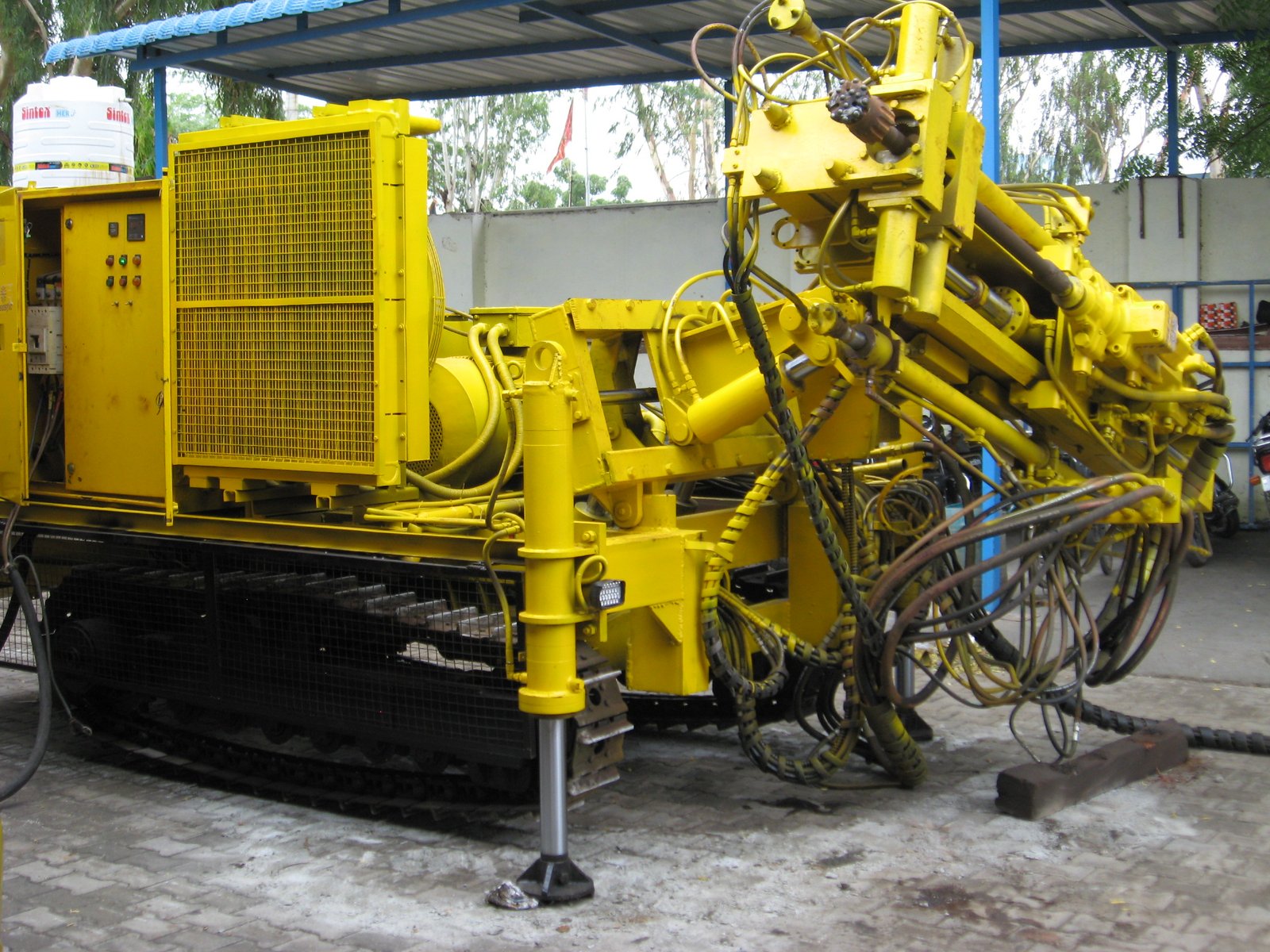

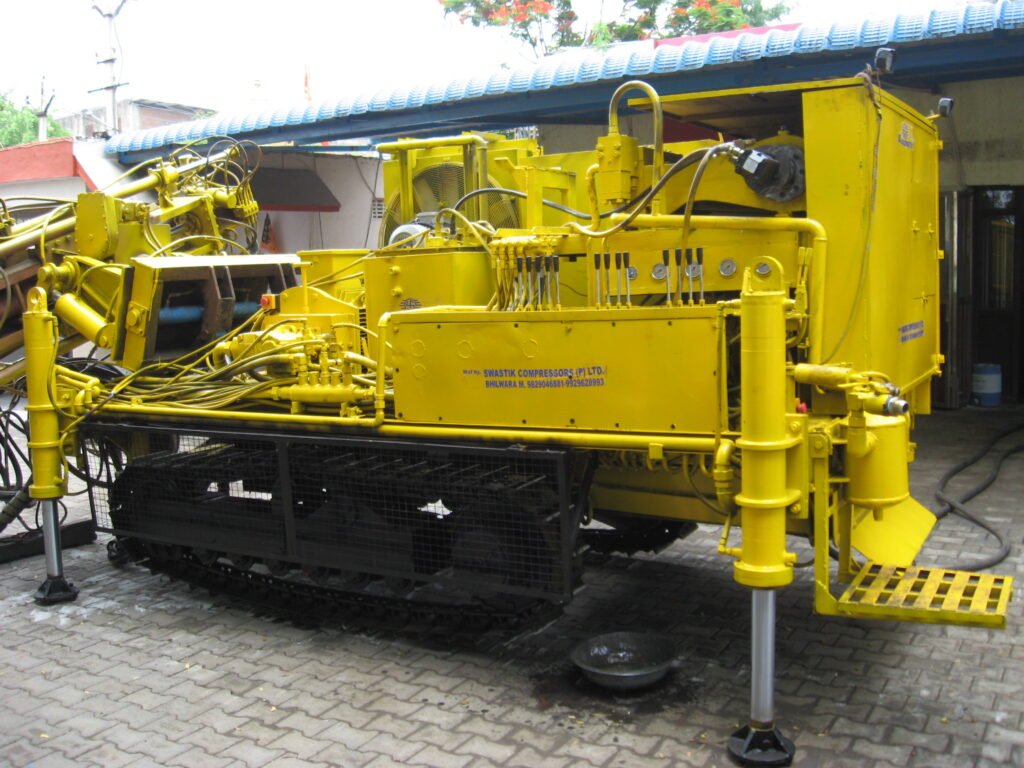

Swastik Solo Solution Production Machine
Swastik Solo Solution Production Machine
Designed for heavy-duty drilling operations in mining, construction, and infrastructure projects, capable
of Producation drilling holes with diameters ranging from 50mm to 165mm and depths up to 30 meters
Key Features
Drilling Capability
- Diameter Range: 50mm to 165mm
- Maximum Depth: 50mm to 115mm Up to 30 meters
- 165mm up to 25 meters
Drilling Mechanism
- Hydraulic Rock Tool Drifter: Utilizes hydraulic power for efficient rock drilling.
- Auto Rod Changer: Automates the process of changing drilling rods,
enhancing operational efficiency and safety. - Motor Power: 200 HP electric motor dedicated to all drilling operations
Operator Comfort and Control
- AC Cabin: Equipped with air conditioning to provide a comfortable working
environment for the operator, enhancing productivity during long shifts. - Operation Control: Offers both electric and manual control options, allowing
flexibility based on operational needs and conditions.
Mast
- 360-degree Mast Rotate: Provides flexibility in drilling angles and
directions, suitable for varied terrain and drilling requirements.
Power and Support Systems
- Water Pump (Flushing): 180 Ltr/min (50 GPM) capacity, used for flushing
to clear holes and cool equipment - Diesel Engine Used only for travel the machine, not for powering drilling functions
All You Need to Know
Safety and Efficiency
- Designed with safety features to ensure operator safety during drilling operations.
- Efficient drilling capabilities, optimizing productivity in smaller-scale projects.
Applications
Mining
Ideal for exploration drilling, small-scale production drilling, and quarrying.
Construction
Used in foundation drilling, piling, and civil engineering projects
Geological Exploration
Suitable for geological surveys and prospecting.
